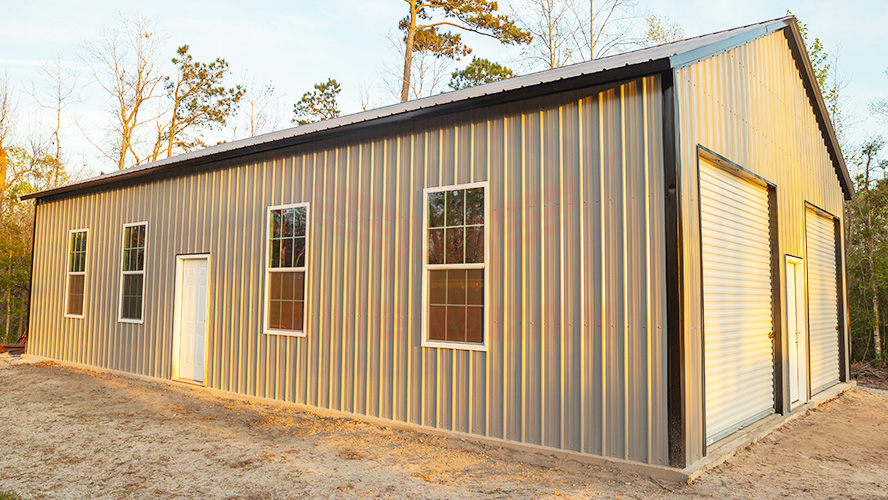

30'x50'x12' vertical roof metal garage
30 feet wide × 50 feet long (1,500 sq ft total floor area)
12 feet tall leg height
Roof pitch: 5/12 with 1-foot side overhangs (steeper pitch for improved runoff and interior clearance)
Estimated center clearance: approx. 16–17 feet
Estimated peak height: approx. 20–21 feet based on 5/12 A-frame roof geometry
A-frame roof structure with vertical roof panel orientation
Wall panels: vertical (confirmed from image)
Roof panels: vertical for superior water and snow shedding
Galvanized steel frame built with 14-gauge certified steel
29-gauge roofing and wall panels
Fiberglass roof insulation installed to reduce heat transfer and condensation
All sides and ends fully enclosed
Exterior wall color: sandstone / light beige
Roof color: earth brown
Trim color: earth brown
Garage door color: white

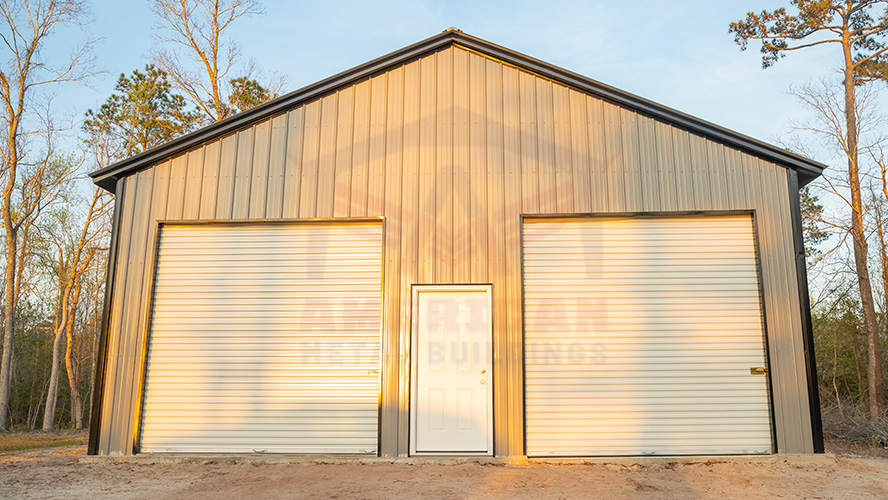

(2) 10'x10' roll-up garage doors on the front wall for vehicle and equipment access
(2) walk-in door openings for daily entry and operational flow
(4) window openings for natural light and cross-ventilation
Recommended installation surface: concrete slab for proper anchoring, door alignment, and insulation performance
Permit typically required in most counties due to enclosed structure and square footage (county rules vary)
Vehicle capacity: comfortably stores 3–4 full-size vehicles, or a mix of trucks, SUVs, equipment, and workshop space
Well-suited for residential garages, contractor shops, equipment storage, farm use, or light commercial operations
